Eye tracking

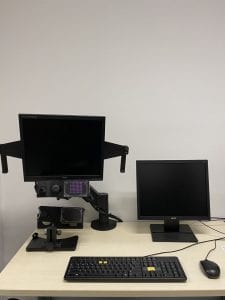

EyeLink 1000 Plus eye tracker

Technical Specifications:

  • Camera mount: LCD Arm Mount/ tower mount/ desktop mount
  • Sampling Rate: Up to 2000 Hz head stabilized or 1000 Hz head free-to-move
  • Accuracy: Down to 0.15° (0.25° to 0.5° typical)
  • Resolution:  1. Head supported: 0.01º RMS; 0.05º Microsaccade resolution
                         2.Remote: 0.05º RMS 0.25º saccade resolution

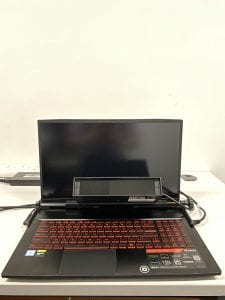

EyeLink Portable Duo eye tracker

Technical Specifications:

  • Camera mount: Laptop mount/ tripod mount
  • Sampling Rate: Up to 2000 Hz head stabilized or 1000 Hz head free-to-move
  • Accuracy: Down to 0.15° (0.25° to 0.5° typical)
  • Resolution: 0.05º Microsaccade resolution; 0.01° spatial resolution

Tobii Pro TX300 eye tracker

Technical Specifications:

  • Head free-to-move
  • Sampling Rate: 300 Hz binocular
  • Gaze accuracy: 0.4°-0.9° (binocular)
  • Max gaze angle: 35°
  • Total system latency: less than 10 ms

Physiology Recording

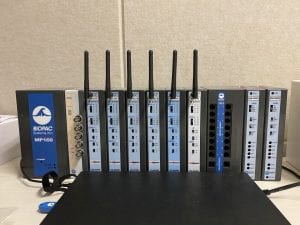

BIOPAC MP160 wireless physiology system

Technical Specifications:

  • Provide simultaneous measurement of different physiological data
  • Subunits: EMG, SKT, RSPEC, PPGED, EEG, NICO
    • EMG amplifier: Electromyogram (EMG) measures electrical potential generated by muscle cells
    • SKT amplifier: measure skin surface temperature and monitor respiration
    • RSPEC amplifier: able to record both respiration and electrocardiogram
    • PPGED amplifier:  1. Photo Plethysmogram (PPG) measures heart rate, inter-beat interval and vasodilation/constriction data. 2. Electrodermal Activity (EDA) measures skin conductance activity/ response
    • EEG amplifier: Electroencephalogram (EEG) measures electrical potential generated by the brain
    • NICO amplifier: measure impedance magnitude; can be used to study beat-by-beat impedance, stroke volume and cardiac output measurements
