Equipment – Neuroimaging Core

3T Functional Magnetic Resonance Imaging (fMRI)

 3.0T Siemens MAGNETOM Prisma MRI scanner

Technical Specifications:

  • Up to 514 diffusion directions
  • High resolution DWI
  • DTI Depicting structural CNS connectivity
  • Higher specificity in body and multinuclear spectroscopy
  • Enhanced flow effects with XR 80/200 gradient system
  • syngo DTI with up to 256 directions
  • Interactive track exploration mode with multiple VOI objects
  • Excellent signal stability even for demanding long measurements – thanks to the new XR 80/200 gradient cooling system

Electroencephalogram (EEG)

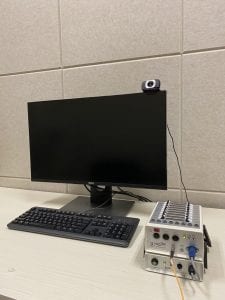

Biosemi ActiveTwo EEG system (2 sets)

Technical Specifications:

  • 24-bit sampling resolution
  • 31 nV digital resolution
  • 8 up to 256 channels
  • User can select sample rate 2, 4, 8, 16 kHz/channel

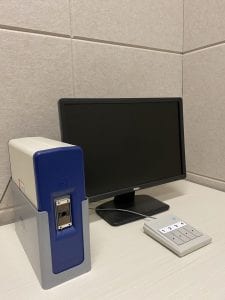

EGI geodesic 400 series EEG system (2 sets)

Technical Specifications:

  • Channel count: 128 channels
  • Whole head coverage: covers the entire scalp, cheeks and the back of the neck
  • 8 nets in total for fitting different head sizes
  • Sampling rate: up to 8kHz

Brain Products ActiCHamp Plus EEG system

Technical Specifications:

  • Sampling rate: up to 100 kHz
  • 24-bit sampling resolution
  • Number of channel: 32 up to 160 channels + 8 AUX channels
  • 8 additional AUX channels: allow integration with extra physiological sensors

Functional Near-infrared Spectroscopy (fNIRS)

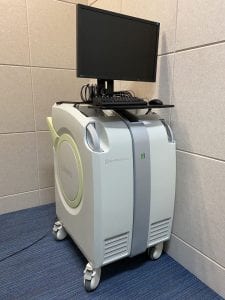

Shimadzu LABNIRS fNIRS system

Technical Specifications:

  • Sampling rate: 6 ms
  • Flexible fiber placements
  • User can select from 4 sets (10 channels) up to 40 sets (142 channels)
  • Utilize 780nm, 805nm and 830nm semiconductor laser wavelengths to capture data

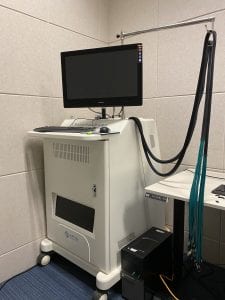

TechEn NIRSOptix CW6 fNIRS system

Technical Specifications:

  • Real-time data acquisition of the entire head
  • 32x32 , up to 32 laser sources and up to 32 detectors
  • Sampling rate: 25 Hz typical
  • Allow integration with E-prime, and BIOPAC MP160 system

NIRX NIRSCOUT fNIRS system

Technical Specifications:

  • 8x8, 8 sources and 8 detectors
  • Sampling rate: 2.5-100 Hz
  • Source wavelengths: LED: 760nm & 850nm; Laser: 785, 808, 830 & 850nm
  • Max. functional resolution: 7.5mm
